Alchemer Dashboard is currently waitlist only. Visit this page to learn more about Dashboard or join the waitlist!

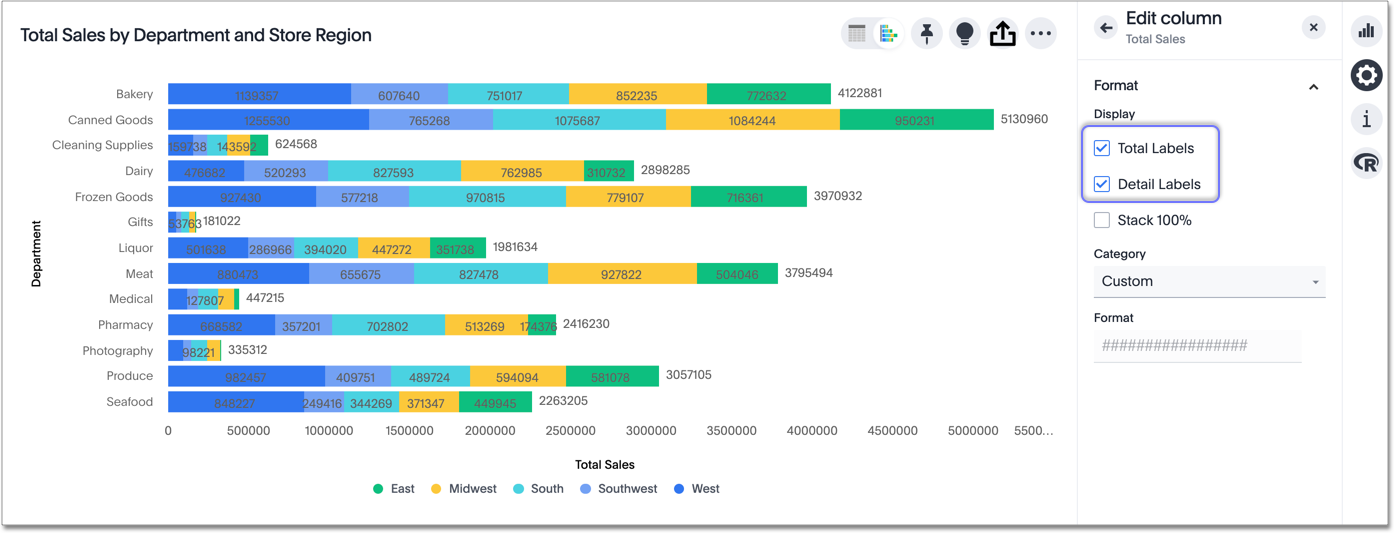

Stacked bar charts are typically used when you want to compare aggregated data and the data that it includes together. Select a configurable axis chip (any axis chip with a >) to show Detail Labels (summaries for each section of each bar) and Total Labels (show the sum of the stacks for each bar).

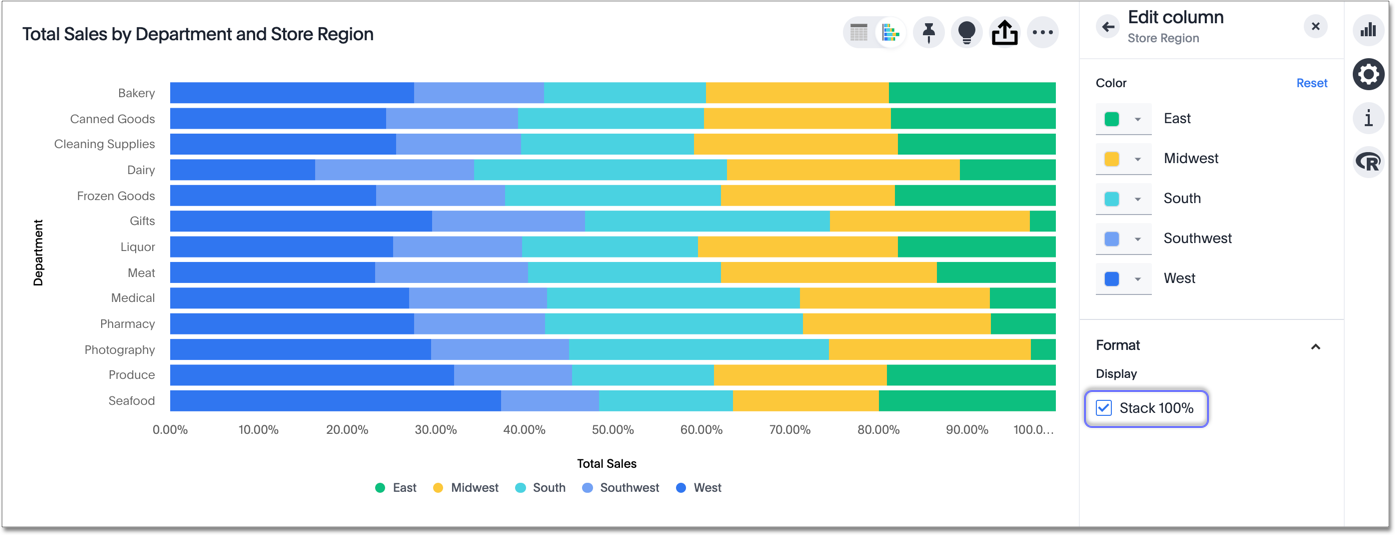

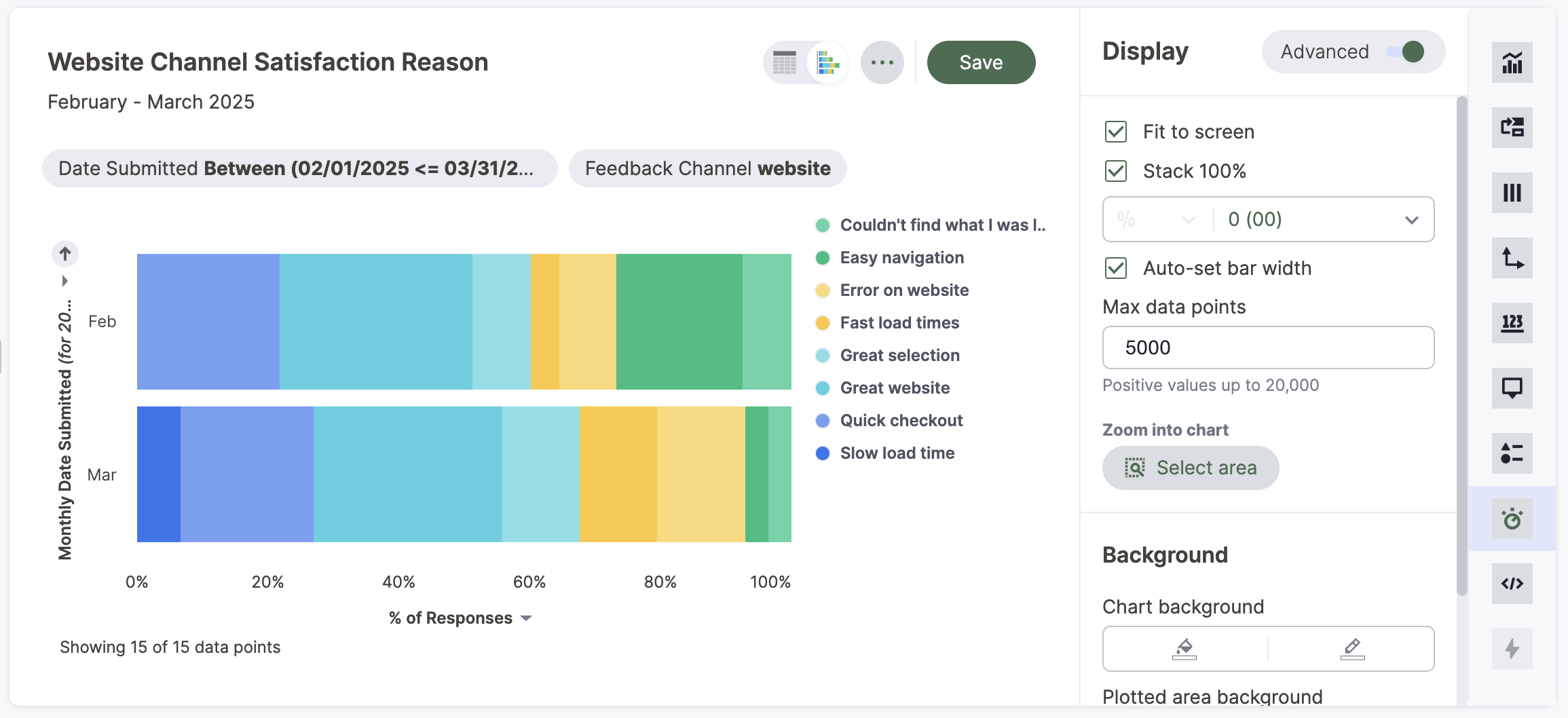

You can also plot the x-axis as a percentage, adding up to 100%. Select the measure or attribute chip that you are using to slice with color. Under Format, toggle Stack 100% on or off. You can also toggle Stack 100% from an axis chip, as in the preceding image. This feature is also available for stacked area and column charts.
Your search must have least two attributes and one measure to be represented as a stacked bar chart.
